Description:

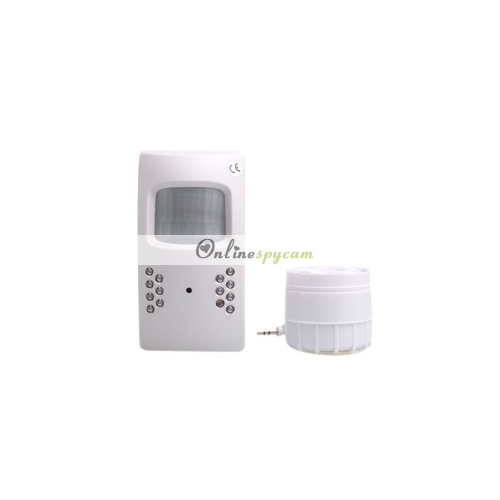

New Model Mini Alarm DVR SD Card Recording PIR Sensor And Adjustable Menu
Highlights
Work with alarm system in wireless
PIR detective&motion detective, working steady
Connect with a mini siren, when someone intrude, it will start recording/ snap automatically
AVI recording and JPG snap optional
Overwriting when memory is full
Support 2G SD card, and supply a SD card reader
Internal 1/3"SONY CCD camera makes pictures clearly
Internal lithium battery
Real time colock record the time for every video/picture
Mode Exhcange for PAL/NTSC
Review the video and browse pictures via monitor or TV
Night vision, using in dark condition
Features:
Trigger common alarm system in 433M wireless frequency (optional)
Interal 1/3" SONY 420TVL CCD camera makes pictures clear
Real time audio and video AVI D1: 720x 480pixels recording
Mode pre-setting among PIR detective, motion detective or both
Mini siren makes the intruder-frighten
AVI recording and JPG snap selectable, when someone intrude, it will start recording/ snaping automatically
Start overwriting when memory is full
Internal 32GB memory, support 16GB SD card
Built-in Lithium battery, 1600mAH, makes it keep working without power
PAL/NTSC mode selectable
Review the video and browse pictrues via monitor or TV
Stamp data and time watermark in recording video or photos
Specification
Power Supply: DC 5V
Electric Current: 500mA - 800mA
AV out Impedance: 75Ω
AV Out Volt: 1Vp - p
TV Signal: PAL / NTSC
Internal Camera: 1/3" Sony CCD
Trigger for Record: Motion detection + PIR detection
Trigger for Alarm: Motion detection + PIR detection (optional)
PIR Detection Distance: ≤8M
View Angle: ≤120 Degrees
Record Frame: PAL:25frames / second NTSC:30frames / second (have 5f/s made for order)
AVI Resolution: 720 x 480
JPEG Resolution: 640 x 480
Horizontal Resolution: 420TVL, 1/3" Sony CCD
Memory: Flash memory and SD card
SD card Capacity: ≤16GB
OSD: English
Alarm Chip: Fixed Code: PT2262
Surge Resistance: 4.7MΩ (optional)
Data Code: D1 low, D2 high, D3 empty, D4 empty
Wireless Frequency: 433MHZ
Li-batteryu Capacity: 1600MAH
Battery Recharge: ＞6 Hours
Battery Discharge: ＞1 Hours
AC Adapter: AC/110-240V, 50-60Hz, DC5V, 1.5A
IR Distance: 5M-8M
IR Wavelength: 850NM
16G SD card using time: Common conditions: AVI video recording for 3-5days, snapshot for 15days
